Locomotive a vapore e locomotori diesel ed elettrici dell'America

February 2007

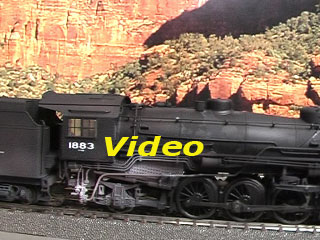

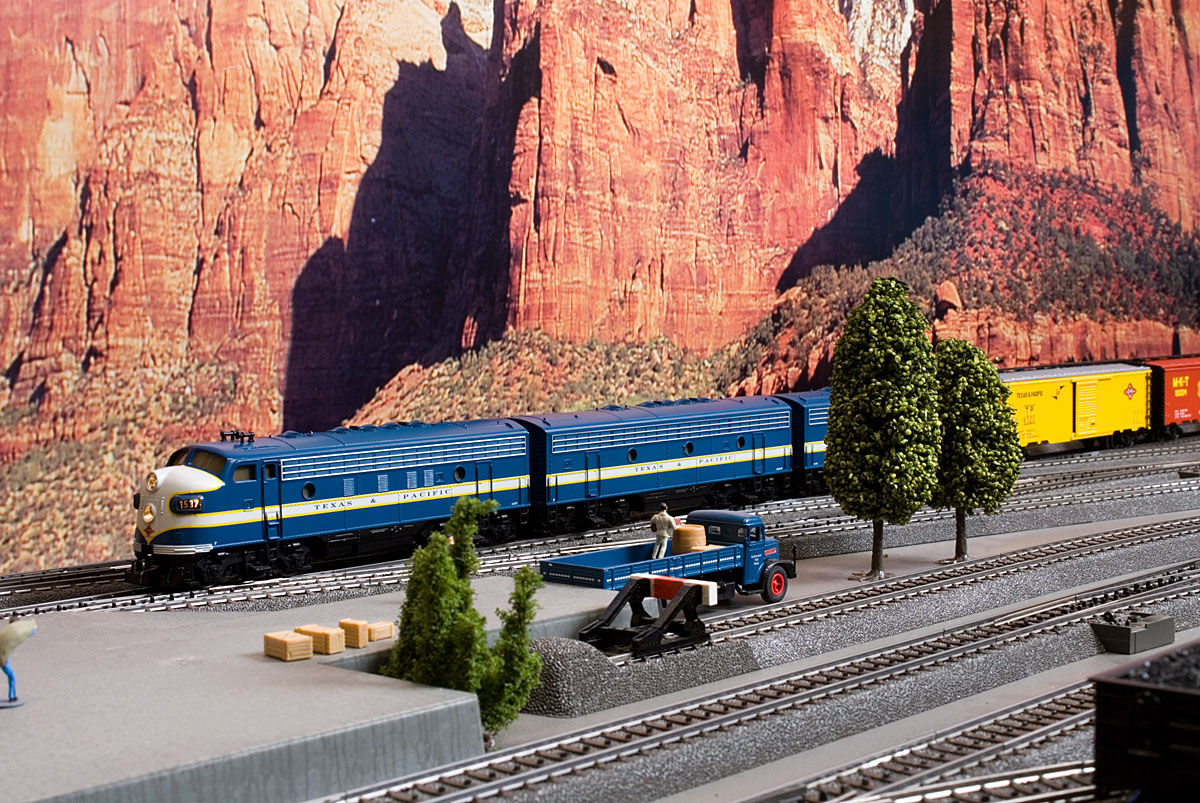

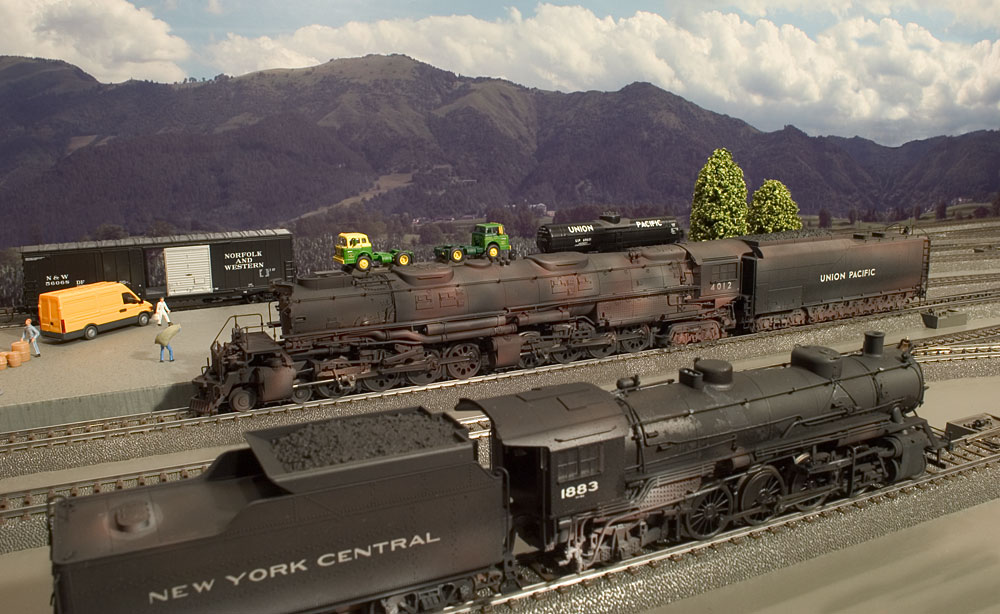

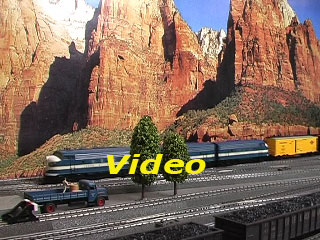

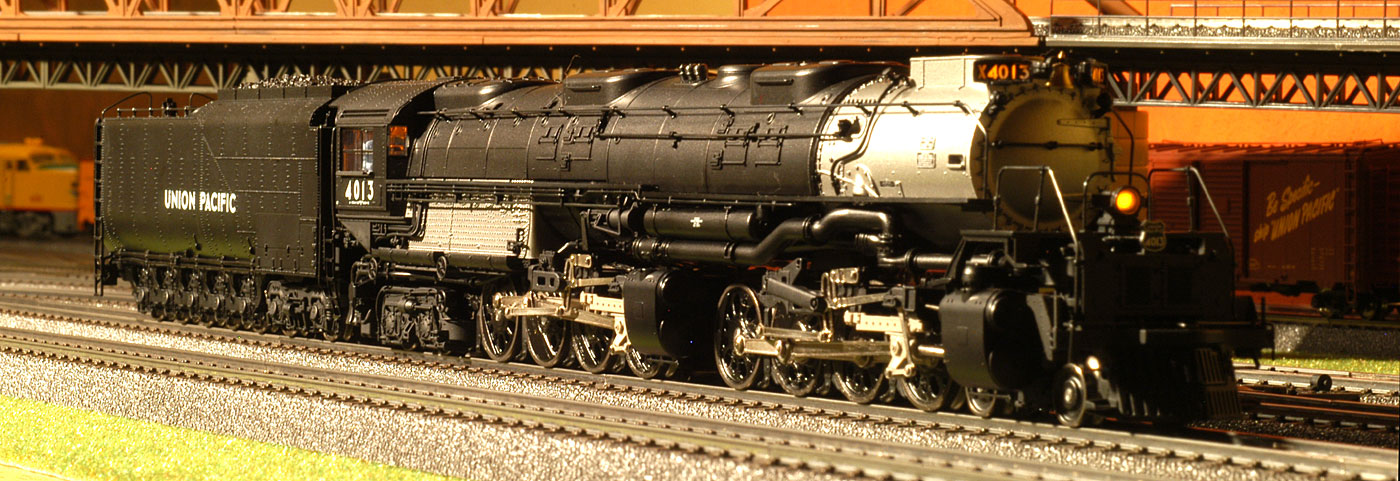

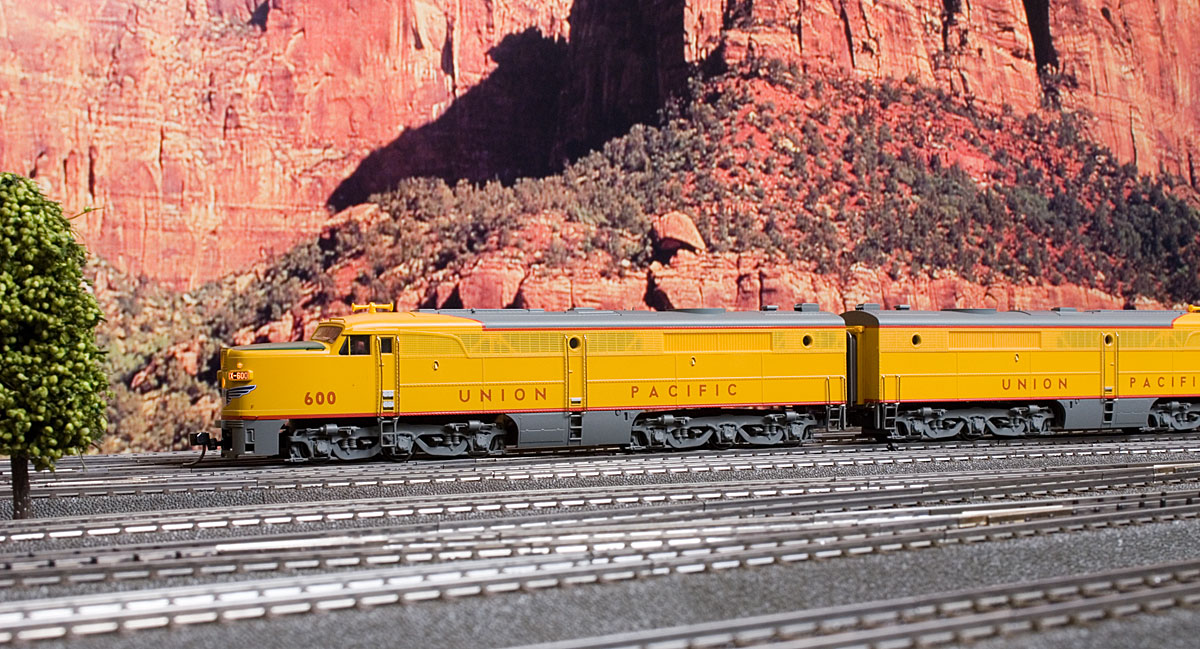

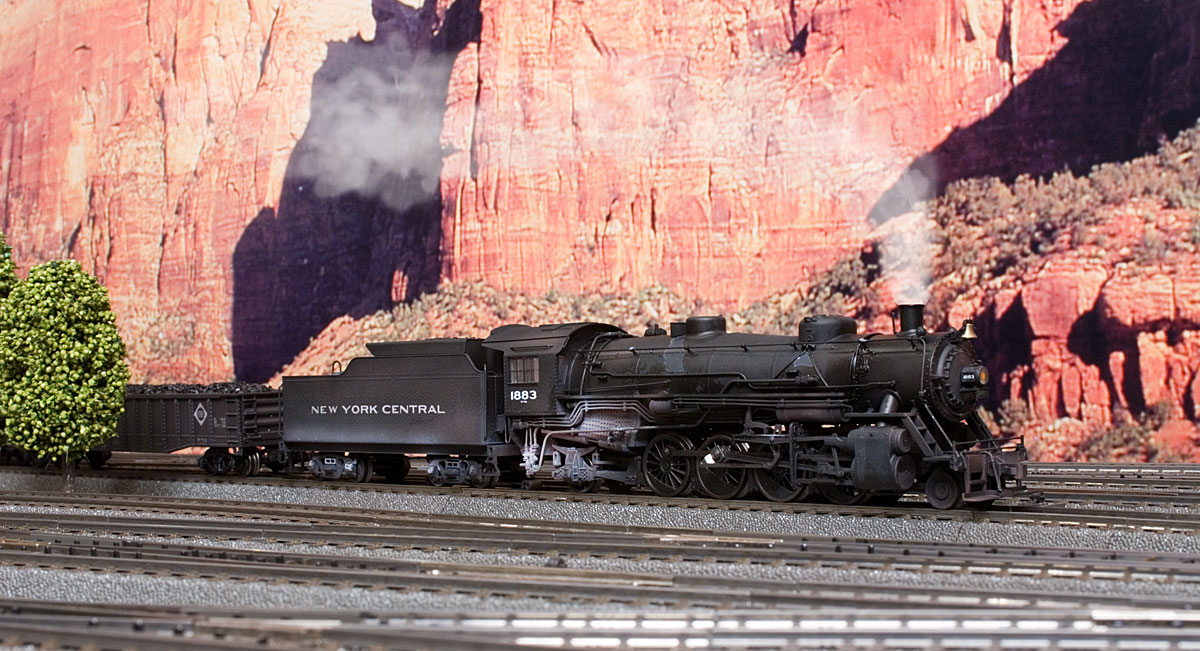

in the trains room, F7 Texas, Mikado weathered, PA1 and Bigboy

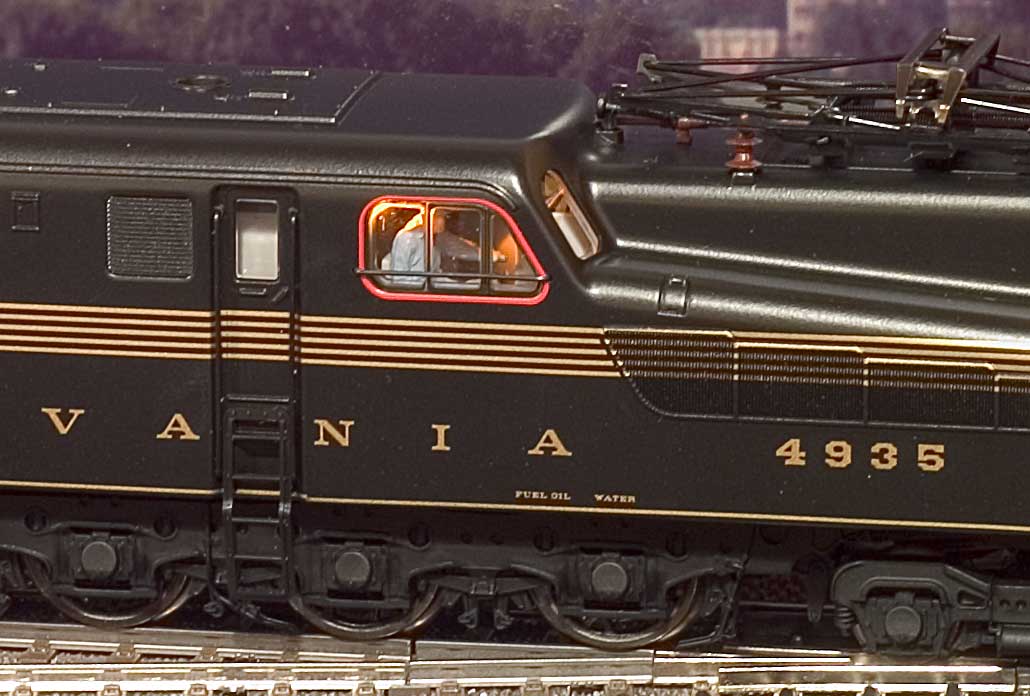

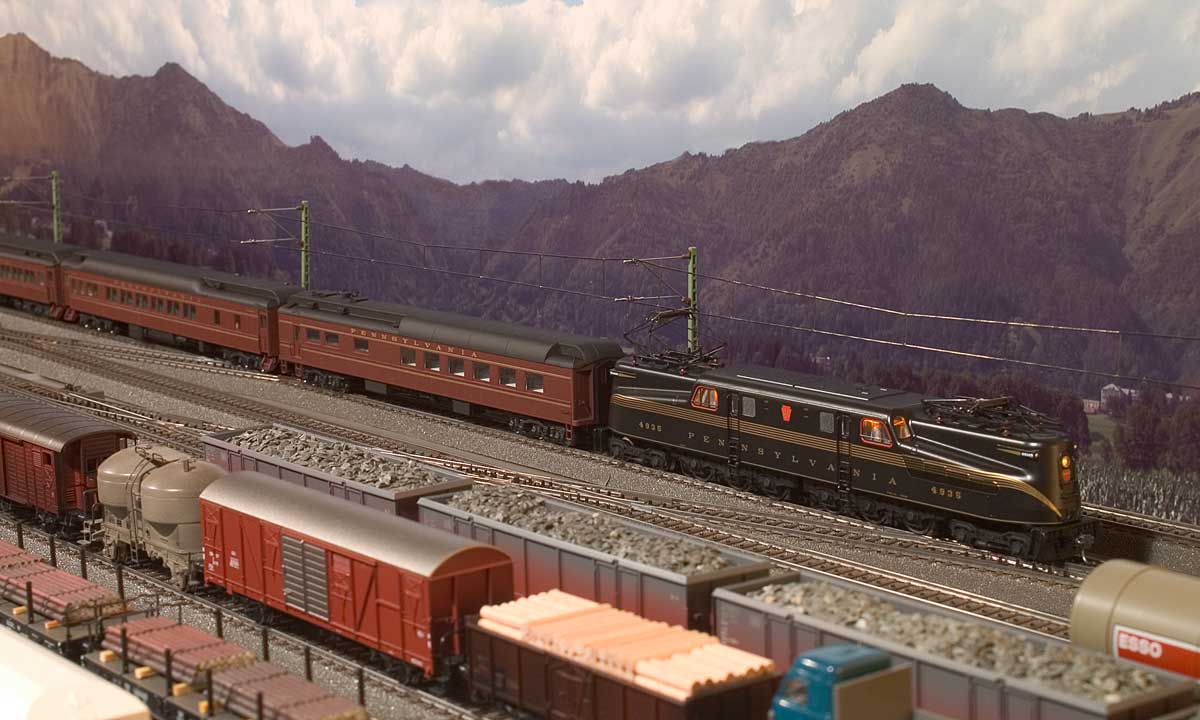

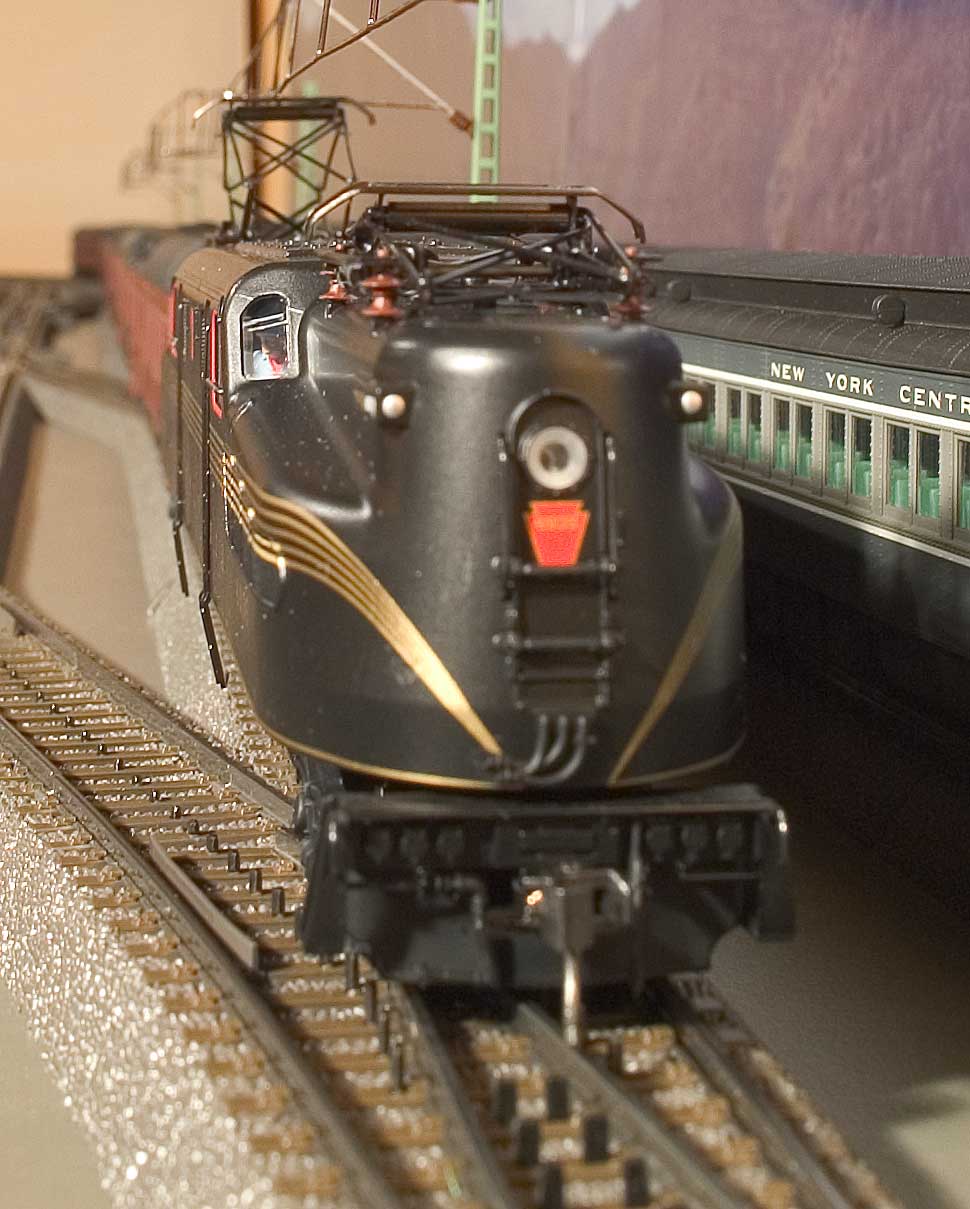

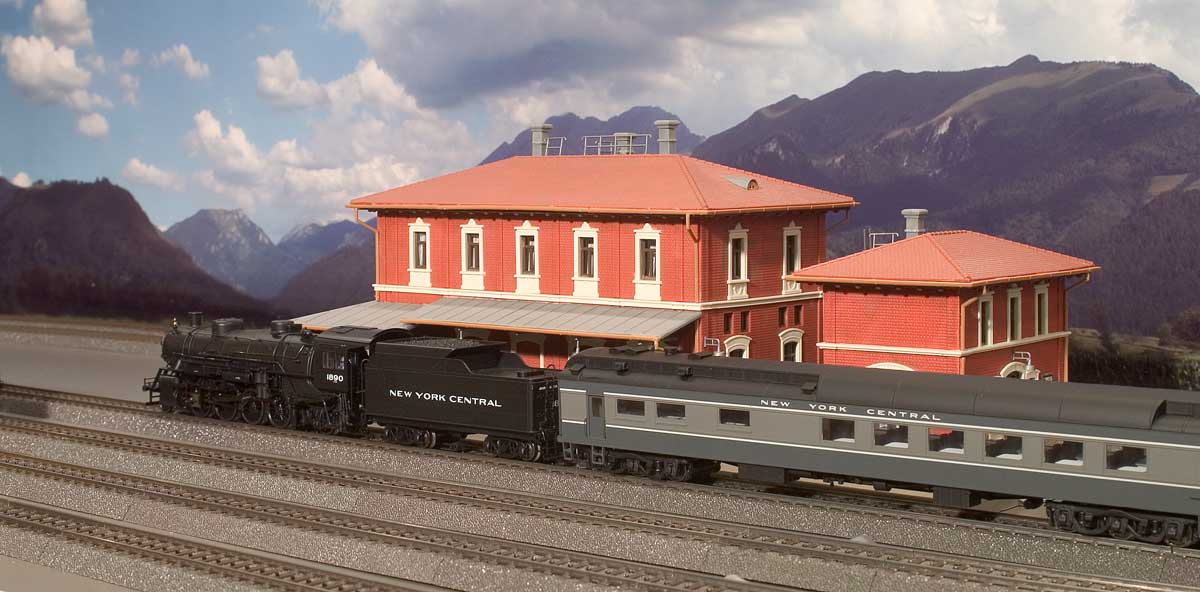

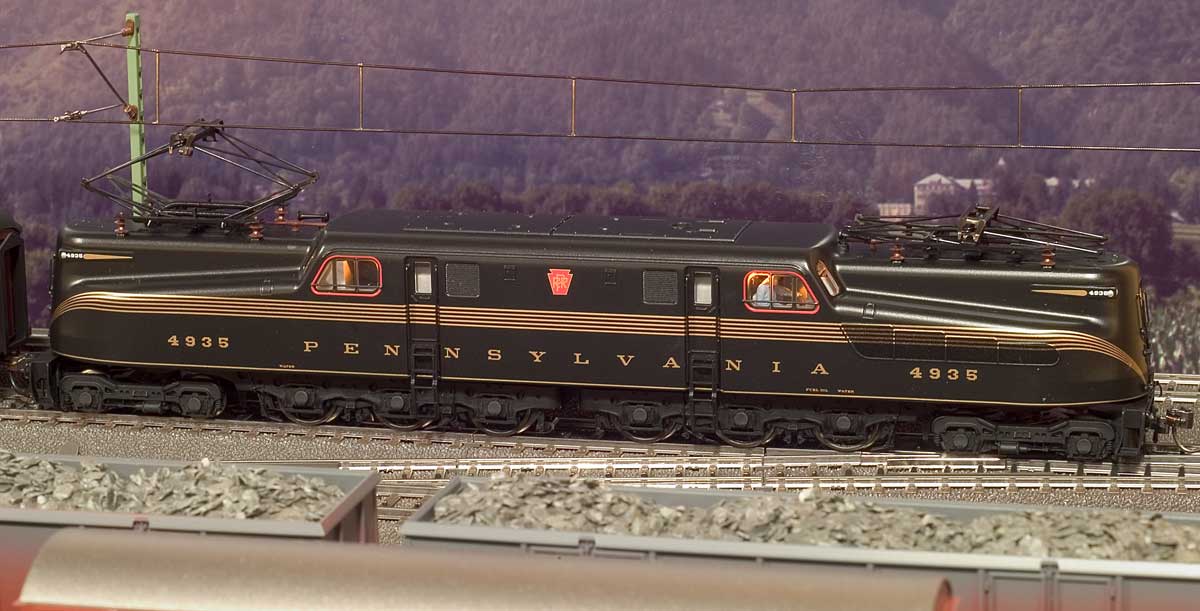

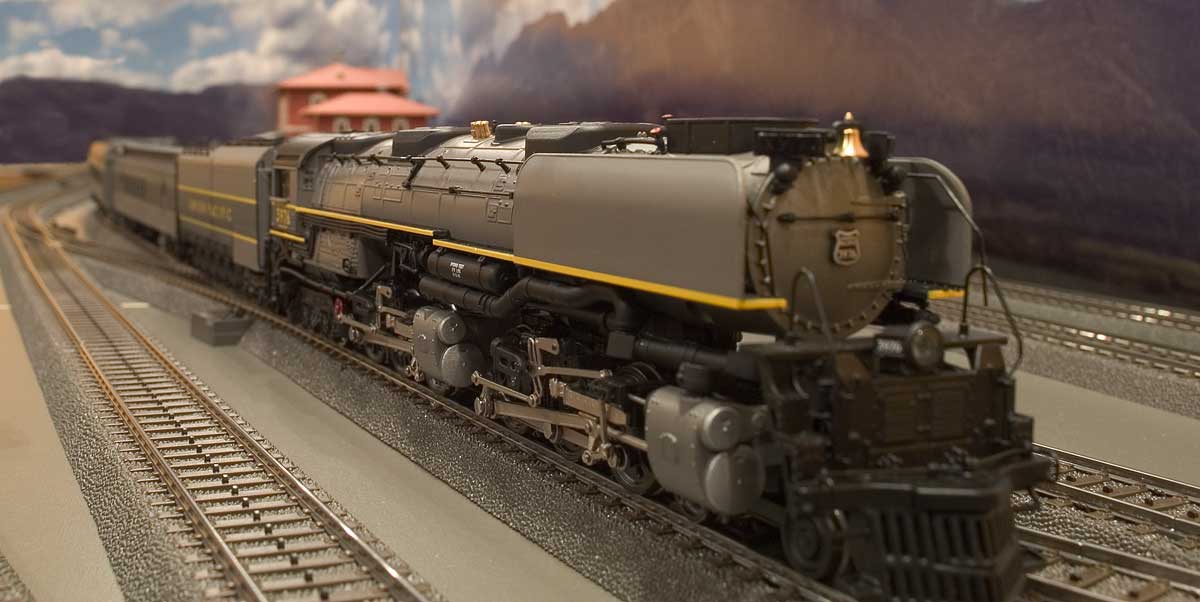

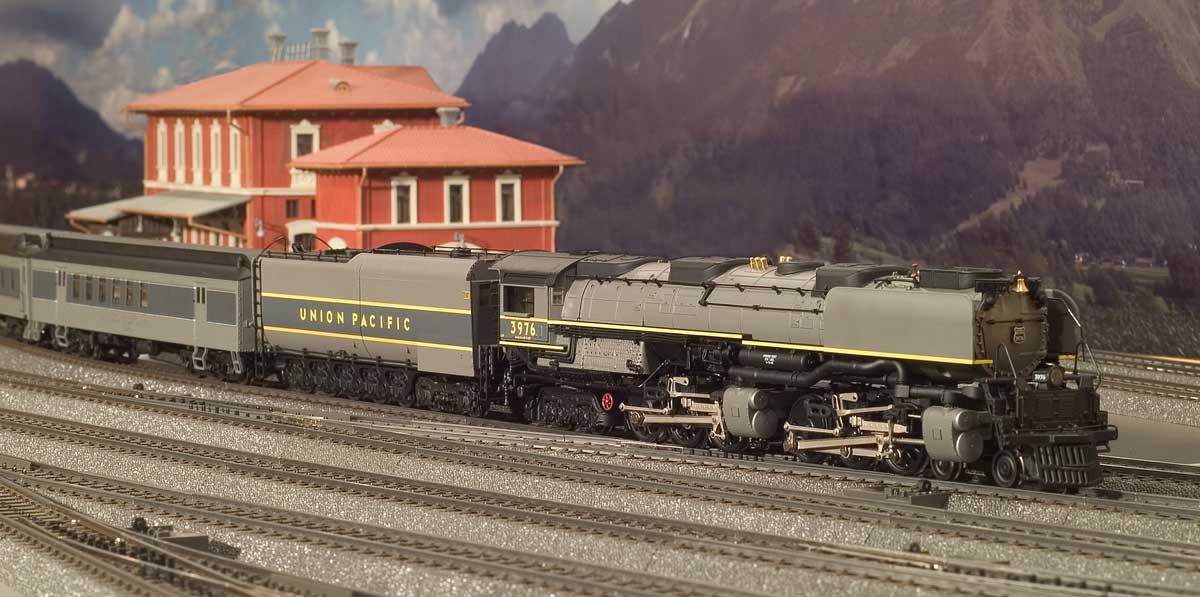

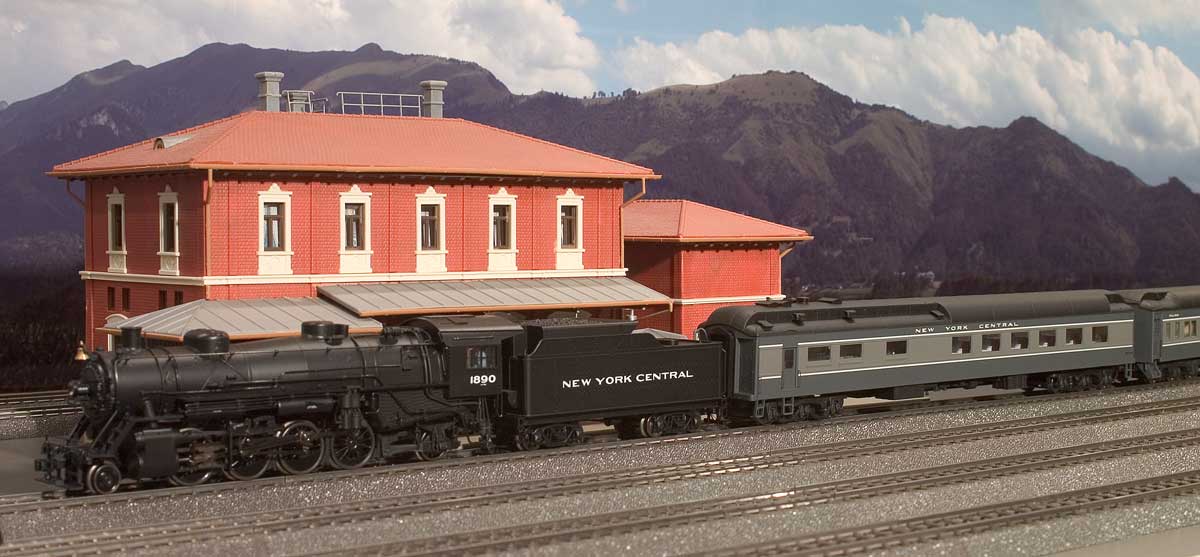

Christmas 2005, in the trains room Mikado, GG1 and  Lionel Challenger pulling some Walthers coaches

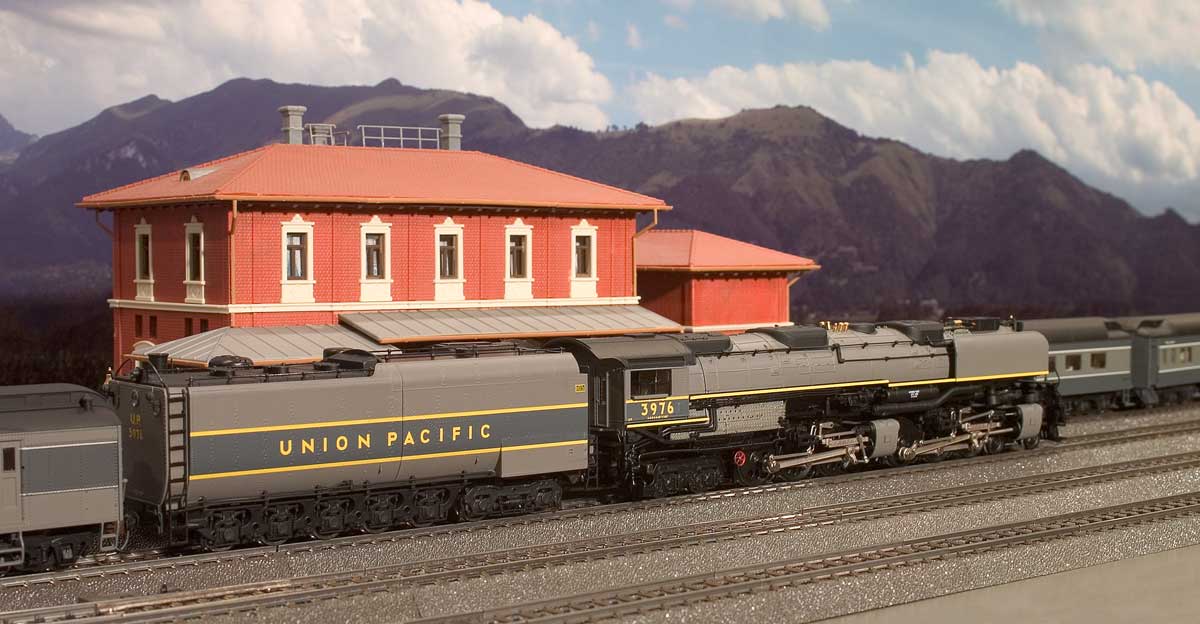

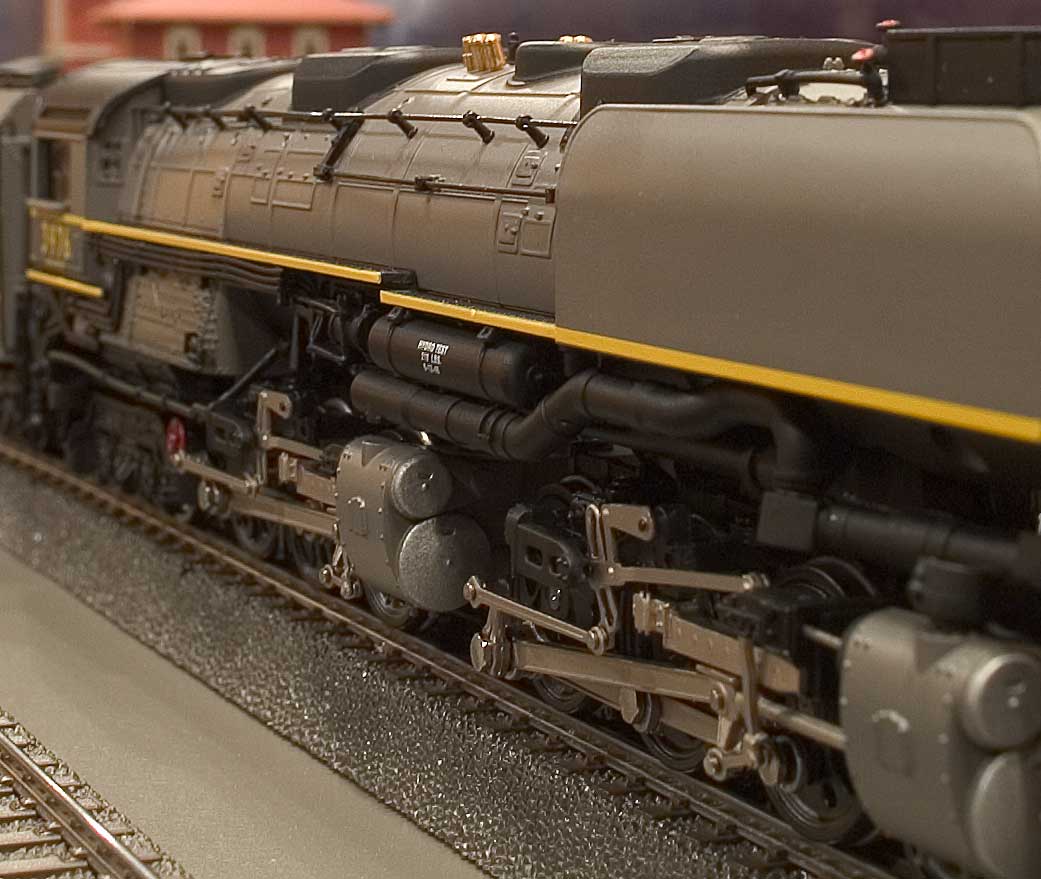

How to convert the Lionel Challenger

edited by Alberto Pedrini

It's easy modify this model, as you see the pick-up shoe can be mounted under the center truck of the loco.

You must use the 7175 pick-up narrowed by cutting the bakelite base.

You must cut some plastic detail from the truck too.

After the removing some of the plastic cover of the wheels you'll see the hole where you insert the pick-up's wire

There  are three sockets, one on the tender and two on the loco, all must be modifyed connecting the two old red/black wires to the one black wire.

And only on the central socket, the new red from the pick-up to the red wire on the socket.

Remember you need a multiprotocol central unit such as the Intellibox to control the DCC decoder.

The last problem is mechanical, you must reduce the movement of the third axle of the tender to improve the crossing of the switches

change the central spring with a half piece of PVC pipe as shown here

now the tender runs well

Walther Heavyweight on R2 bend

These coaches can run only on  minimum 70 cm radius bends.

Here the modifyes necessary to allow the circulation on R2 tracks.

the arrows show the critical points

Cut the plastic by a Dremel/Proxxon as shown

Now they are ready for the R2 bends
